Refractometers for Pulp and Paper Processing

The Electron Machine MPR E-Scan has numerous applications in the paper industry. The most common applications are on black liquor and green liquor. Electron Machine Corporation pioneered the use of refractometers to accurately measure black liquor dissolved solids nearly 50 years ago.


Black Liquor is the waste product from the process of digesting pulpwood into paper pulp by removing various elements to free the cellulose fibers. Electron Machine's long history with this application has resulted in numerous design features that specifically address problems associated with this harsh process measurement.

Green liquor is the dissolved concentration of sodium sulfide, sodium carbonate, and other compounds from the recovery boiler in the paper making process.  Electron Machine Corporation has been actively refining the use of refractometers for measuring green liquor density for over 30 years. The current system uses the MPR E-Scan refractometer combined with heated high-pressure water for cleaning. The resulting combination provides an effective removal of optical coatings by reducing thermal changes, minimizing maintenance to allow for a reliable measurement source for on-line automatic control.

The MDS Monitor Divert System is a BLRBAC compliant Black Liquor solids monitoring system designed specifically for Black Liquor recovery boilers. The MDS Monitor Divert System consists of two completely independent MPR E-Scan Hybrid-Digital refractometers with a separate monitor console that supervises the proper operation of each refractometer. The monitor constantly insures that all parameters remain within operational limits and applies the proper divert or alarm actions should a fault or low solids liquor be detected. A built-in printer records all actions with a date and time stamp. The entire system is designed to be user friendly with large daylight-readable color displays and an intuitive menu-driven interface.

The MPR E-Scan also gives paper companies the ability to accurately control the washing line, by detecting changes in the total dissolved solids coming off the washers. This precise measurement allows effective control of the fresh water flow to the washers, reducing excessive water usage. Combining the measurement with data- analysis tools, a company can monitor inefficiencies in the washing line and evaluate the washing results. Allowing improvements in washing efficiency and overall reduction in water. The MPR E- Scan will reduce the overall time needed to meet target dilution. With near instant readings of black liquor concentration and temperature, the instrument removes the reliance on offline testing.

For more information, visit http://www.electronmachine.com or call 352-669-3101.

Industrial Refractometers in Brownstock Washing

Pulp and paper mill

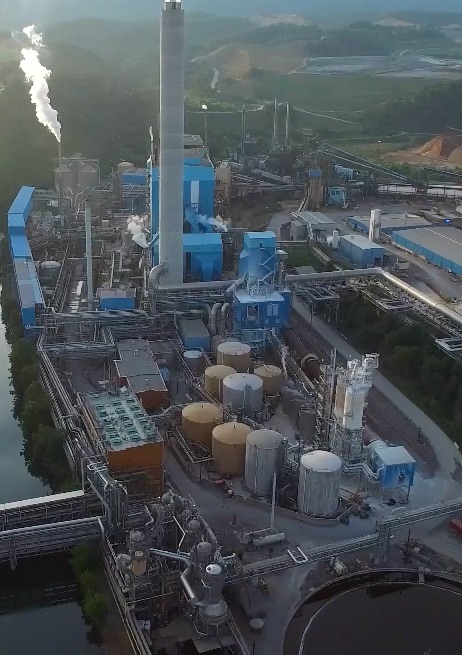

Pulp and paper mill.
In pulp and paper production, brown stock washers are used to recover cooking chemicals from pulp production and are critical for maximizing chemical recovery which impacts the financial success and environmental compliance of a pulp mill.

The purpose of brownstock washing is to remove soluble matter from the pulp while using the least amount of water. Efficient washing improves the recovery of cooking chemicals, reduces the use of chemicals during bleaching, increase pulp quality and helps reduce deposit buildup. By utilizing a refractometer to measure the black liquor solids in the feed and outlet stock lines, and the incoming and outgoing filtrate lines, a paper company can experience increased control and cost savings.

The Electron Machine MPR E-Scan gives paper companies the ability to accurately control the washing line, by detecting changes in the total dissolved solids coming off the washers. This precise measurement allows effective control of the fresh water flow to the washers, reducing excessive water usage.

Combining the measurement with data analysis tools, a company can monitor inefficiencies in the washing line and evaluate the washing results. Allowing improvements in washing efficiency and overall reduction in water. The MPR E- Scan will reduce the overall time needed to meet target dilution. With near instant readings of black liquor concentration and temperature, the instrument removes the reliance on offline testing.

The MPR E-Scan is constructed of various alloys to ensure a long service life in a harsh chemical environment. With our customer pipeline adapters, the instruments can be implemented into any process. Due to the unique measurement principle, the instrument's readings are unaffected by bubbles, particles, fibers, color, flow, pressure or vibration. By utilizing the instrument to control and monitor the brownstock washing, paper companies can guarantee that proper dilution was met and maintained.

Electron Machine MPR E-Scan
Electron Machine MPR E-Scan
KEY BENEFITS
  • Increased washing efficiency
  • Continuous accurate control of dilution factor
  • Consistent pulp quality Increased evaporator efficiency
  • Reduced wash loss and decrease wash water
  • Error and Warning light indications Reduced time for correct wash concentration
  • Continuous temperature readings
Learn more about industrial refractometers and their application in the pulp and paper process by visiting the Electron Machine website at http://electronmachine.com or by calling 352-669-3101.
